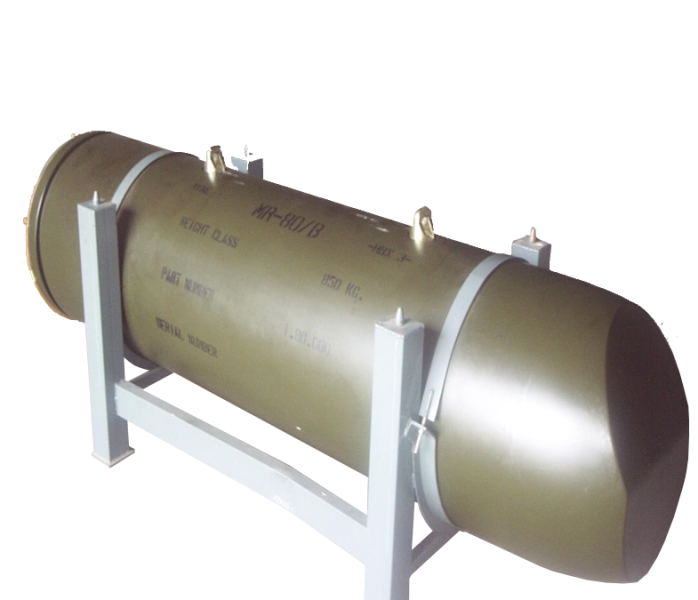

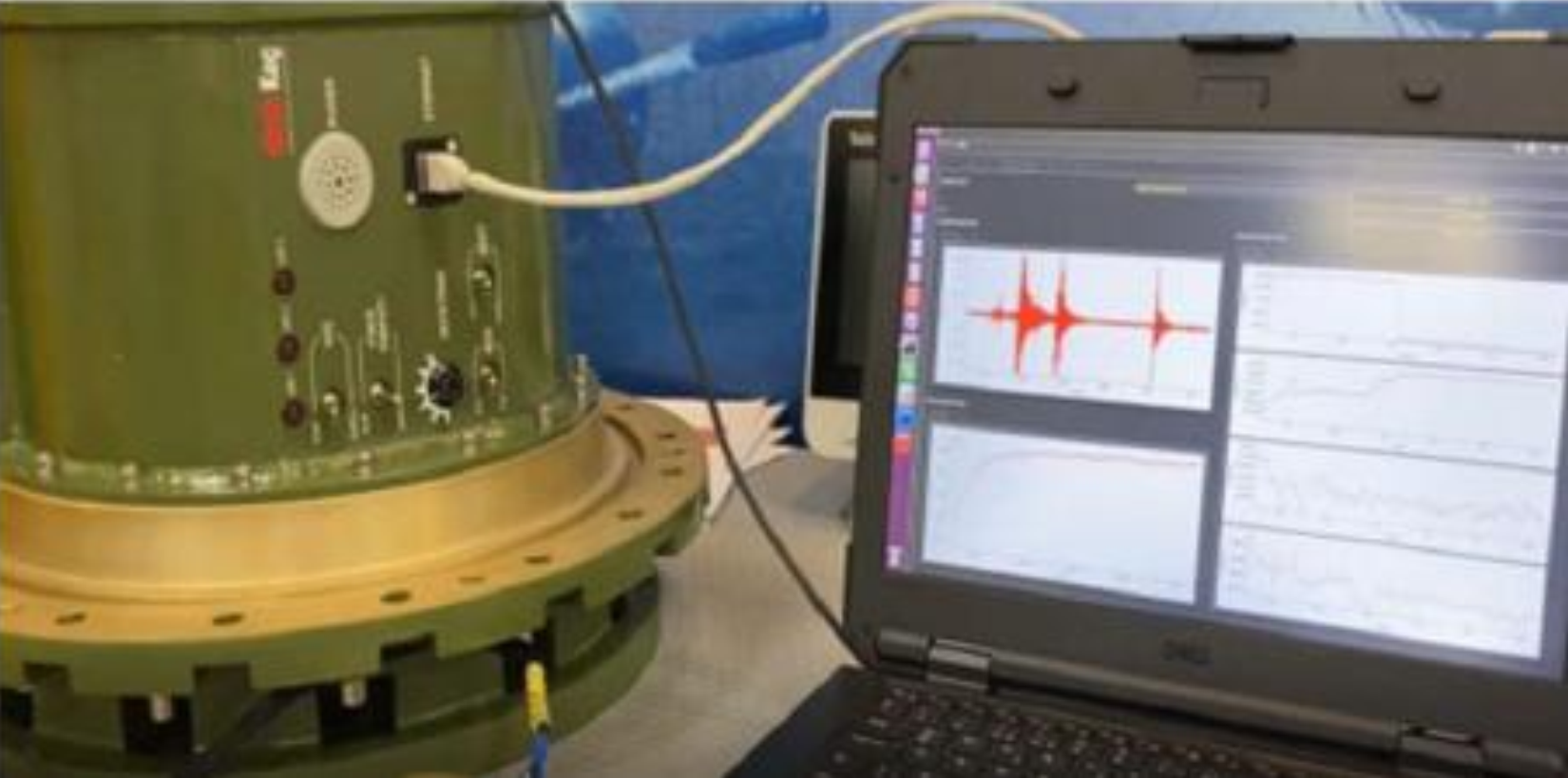

Seamine
General Specification
| Mine Type State of Art, Modular & Smart Sea (Bottom) Mine | |

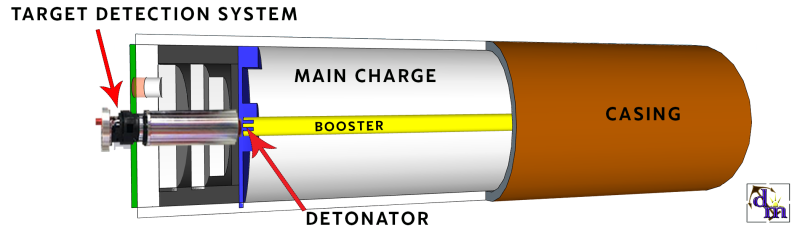

| Explosive & Ignition Chain | |
| Explosive & Ignition Chain | Main Charge >620 kg of TNT equivalent PBXN (plastic bonded underwater Explosive) |
| Boosters | >5 kg of TNT equivalent PBXN |
| Detonator & Arming Device | Multi- Layered (Software & Hardware) Electrically Controlled |
| Operational | |
| Laying Depth | < 300 meters |
| Capabilities | Detection, Identification, Recording & Analysis, Adaptive Signal Processing |
| Test your tactic before deploy capability | |
| Influence | |
| Sensors | Acoustic |
| Pressure | |
| Magnetic | |
| Activation | Sensors and/ or Remote Control (optional) |

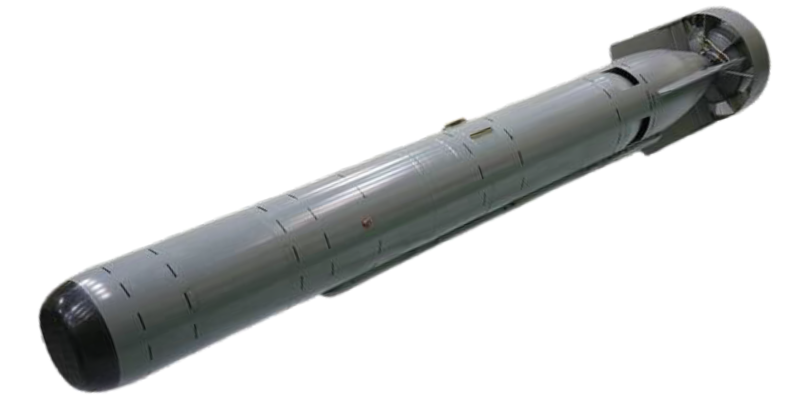

Navi Mini Torpedo
NAVY MINI TORPEDO is design to be lighter and compact underwater weapon to allow various launch platform such as smaller ship and aircraft.
FEATURES
Role | : Light weight torpedo anti-submarine. |
Guidance | : Advance Acoustic homing system. |
Control | : Rudders |
Power Sources | : Seawater activated battery |
Thrust | : By means of contra Rotating Propulsion motor. |
Operating Depth | : Estimated 450 meters. |
Maximum Speed | : > 30 Knots |
Endurance | : > 5 min (minimum) |
Range | : > 5.5 km |
Weight | : > 190 kg (Warhead / Exercise) |
Warhead | : > 40 kg, high explosive |
Length | : Standard |
